What is battery OCV

Abstract: Open circuit voltage (OCV) is an important characteristic parameter of lithium-ion batteries, which is used to analyze the changes of electronic energy in electrode materials, and to estimate battery state of charge (SOC) and manage the battery pack.

What is OCV and SOC?

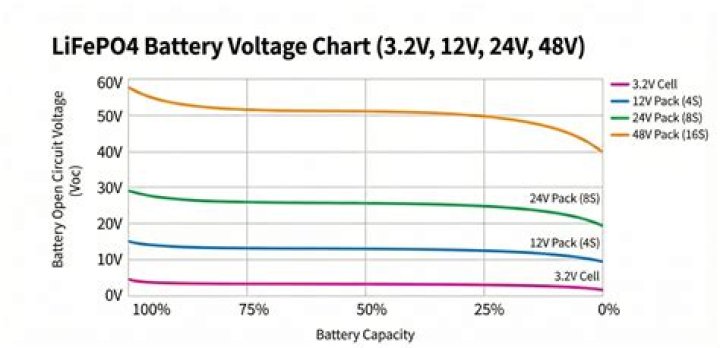

Open circuit voltage (OCV), as a nonlinear function of state of charge (SoC) of lithium ion battery, commonly obtained through offline OCV test at certain ambient temperatures and aging stages. The OCV-SoC relationship may be inaccurate in real application due to the difference in operation conditions.

Why is OCV higher than CCV?

Open-circuit voltage (abbreviated as OCV or VOC ) is the difference of electrical potential between two terminals of a device when disconnected from any circuit. There is no external load connected. As a battery has an internal resistance, CCV is lower than OCV and CCV becomes lower with a range of current. …

What is OCV test?

Open Circuit Voltage (OCV) is the difference of electrical potential between positive and negative terminals of a battery without any load connected. The purpose of OCV test is to identify the battery electrical potential capability.

How do you measure battery OCV?

The Low-current OCV test consists in using a small current to charge and discharge the battery and then measure the output voltage which is approximately equal to OCV . This test have been performed, by the CALCE battery group, for an ambient temperature varying from −10 ◦C to 50 ◦C with interval of 10 ◦C.

What is fuel cell OCV?

Fuel Cell Open Circuit Voltage At certain operating conditions, the OCV is mainly determined by the hydrogen crossover rate and the mixed potential formed by the electrochemical reactions of Pt surface oxidation and the ORR.

What is SOC in electric vehicle?

One of the most important information to understand about your electric vehicle is the state of charge. The battery’s state of charge (SOC) refers to how much charge, or energy, is left in the battery. SOC is measured in percent, and it’s the same measurement as a gas tank fuel gauge in a fuel-powered vehicle.

How is a battery leakage test conducted?

Depending on the type of cell, it’s possible to perform the leak testing of finished battery cells, before or after formation, by tracing of vapor or gases that are already present, or generated inside the cell. The test is carried out in vacuum chamber, and a special mass spectrometer is used for tracing.

Why is open circuit voltage important?

When a load is connected and the circuit is closed, the source voltage is divided across the load. … The open-circuit voltage is used to mention a potential difference in solar cells and batteries. However, it will depend on certain conditions like temperature, state-of-charge, illumination, etc.

What is ballast OCV?

Open Circuit Voltage (OCV) LIGHTING: Open Circuit Voltage measured across the socket the lamp screws into, with the ballast powered on. It is dangerous to stick a voltmeter into such a socket without precise knowledge of the ballast because exceedingly high voltages could be present. OAR.

Article first time published on

What should a 12 volt battery read fully charged?

12.6V volts or above – Your battery is healthy and fully charged. No further action is required. 12.5 volts – Your battery is at a healthy state of charge, but we’d recommend re-checking it within a few days to ensure the voltage hasn’t dropped any further.

What is open circuit potential?

Open circuit potential (OCP) is defined as the potential that exists in an open circuit. That is, it is the voltage present when the terminal ends of a circuit are detached, and there is no external load. Figure 1. … When an electrode is immersed in an electrolyte, it will adopt an open circuit potential.

What voltage should I charge a 12 volt battery?

The typical charging voltage is between 2.15 volts per cell (12.9 volts for a 12V 6 cell battery) and 2.35 volts per cell (14.1 volts for a 12V 6 cell battery). These voltages are appropriate to apply to a fully charged battery without overcharging or damage.

What is DOD in battery?

A battery’s depth of discharge (DoD) indicates the percentage of the battery that has been discharged relative to the overall capacity of the battery. Depth of Discharge is defined as the capacity that is discharged from a fully charged battery, divided by battery nominal capacity.

What is SOH and SoC in battery?

The State of Charge (SOC) has an important role in determining the remaining capacity of the battery pack. … Battery State of Health (SOH) is an important indicator of the battery’s life. SOH reflects the ability of a battery to deliver and receive energy and power.

What is Soh in battery?

SoH= State-of-Health The state-of-health (SoH of a battery describes the difference between a battery being studied and a fresh battery and considers cell aging. It is defined as the ratio of the maximum battery charge to its rated capacity. It is expressed as a percentage as seen below.

What is open circuit for a cell?

The open-circuit voltage, VOC, is the maximum voltage available from a solar cell, and this occurs at zero current. The open-circuit voltage corresponds to the amount of forward bias on the solar cell due to the bias of the solar cell junction with the light-generated current.

What is the end product of hydrogen fuel cells?

Fuel cells that use pure hydrogen fuel are completely carbon-free, with their only byproducts being electricity, heat, and water.

What is open circuit voltage in welding?

Open Circuit Voltage (also known as no-load voltage) is the voltage that exists between the electrode and the job (or the earth) when welding is not in progress.

What causes a open circuit?

Open circuit is one where the continuity has been broken by an interruption in the path for electrons to flow. Open circuit can happen because of component failure, break in conductor or manual interruption. In series circuit, open circuit can cause complete loss of current.

What is an example of a open circuit?

An example of an open circuit is a string of electric lights that don’t work if one bulb goes out. A signal path, line, or channel that is available for use. … An incomplete electrical circuit through which no current can flow. Turning the switch to “off” makes it an open circuit.

Why is current zero in open circuit?

In an open circuit, there is no path from higher voltage to lower voltage and thus no current flows in the circuit. … An open circuit describes that the two terminals points are externally disconnected. This is equivalent to a resistance Infinity. Thus, it means that zero current can flow between the two terminals.

What causes a car battery to leak acid?

When a car battery leaks acid, it is usually through the cell caps on the top of the battery, or due to damage to the body. Overcharging your car’s battery is another reason for leakage. … Extreme cold weather is also a factor that can lead to battery leakage.

What causes gassing in a battery?

One of the hazards of overcharging is excessive gassing. Some gassing naturally occurs during normal charging, but when a lead acid battery is overcharged, the electrolyte solution can overheat, causing hydrogen and oxygen gasses to form, increasing pressure inside the battery.

What are 5 things that shorten the life of a battery?

Factors that can shorten its life include an extended period of partial or full discharge, vibration from not being properly secured, under- or overcharging, extreme temperatures, water loss, electrolyte contamination and corrosion on terminals.

Which ballast is used in sodium lamp?

Operation. The inductive ballast is made up of a coiled wire. The coil creates a magnetic field inside when a current is applied. It stores the energy of the current in the magnetic field it creates.

Which ballast is used in sodium lamp having crest factor?

The reactor ballast provides a low current crest factor of about 1.5. The amount of the starting voltage it can provide to the lamp has limitations up to the line voltage.

How can you tell if a 12V battery is good?

If the battery is good, the reading will be higher than 12 volts. It will hit the 12.8 volts if it is fully charged and 12.1 volts if it is about 50 percent charged. If is it about 11.9 volts or lower, this means it isn’t charged.

At what voltage is a 12-volt battery considered dead?

Resting fully charged 12-volt batteries are around 12.8-12.9 volts, and flat dead ones are at 12.0 volts, so 12.4 volts on a resting battery means it’s about 50% charged.

Why is my 12V battery 14v?

With the motor running, the multimeter rating should stay in the 14 to 14.5 volt range. Dropping below 14 means either the battery is weak and unreliable for sustained vehicle operation or the alternator is failing.

What's the difference between a short circuit and an open circuit?

In particular: The open circuit voltage is the voltage difference measured between two terminals when no current is drawn or supplied. The short circuit current is the current that flows when the terminals are forced to have zero voltage difference.
